RTJ Flange
UNS S30400 RTJ Flange, DIN 1.4301 RTJ Flange, Inconel 625 RTJ Flange, ASME SA182 Duplex 2205 RTJ Flange, 2507 Super Duplex RTJ Flange, ASTM A182 SS 304 RTJ Flange.
About RTJ Flange
NISSAN STEEL Manufacturer supplier of SS, High nickel and Duplex / Super duplex Flanges, for enquiry contact on email: sales@nissansteel.com, export@nissansteel.com, nissansteels@gmail.com
UNS N08904 RTJ Flange Exporter, UNS S30400 RTJ Flange Manufacturer, DIN 1.4301 RTJ Flange Stockist, 2507 Super Duplex RTJ Flange Supplier.
Specification of RTJ Flange
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Ring Type Joint Flange |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Ring Type Joint Flange |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar Ring Type Joint Flange |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Ring Type Joint Flange |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized Ring Type Joint Flange |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar Ring Type Joint Flange |
| Most common types of Ring Type Joint Flange | Forged / Threaded / Screwed / Plate |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |

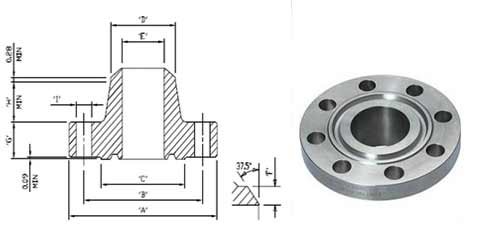

Dimensions Standard Of RTJ Flange
Class 150 RTJ Flanges Dimensions
| Size in Inches | Size in Millimeter | Outer Diameter (O.D.) | Thickness Of Flanges | Hub Outside Daimeter | Weld Neck Outside Daimeter | Length Of Welding Neck | RTJ RF Diameter | Height Of RTJ RF | PCD | RTJ Pitch Diameter | RTJ Deptd | RTJ Widtd | Bore |
| A | B | C | D | E | F | G | H | I | J | K | L | ||
| 1/2 | 15 | 90 | 9.6 | 30 | 21.3 | 46 | N/A | N/A | 60.3 | N/A | N/A | N/A | |
| 3/4 | 20 | 100 | 11.2 | 38 | 26.7 | 51 | N/A | N/A | 69.9 | N/A | N/A | N/A | |
| 1 | 25 | 110 | 12.7 | 49 | 33.4 | 54 | 63.5 | 6.35 | 79.4 | 47.63 | 6.35 | 8.74 | |
| 1 1/4 | 32 | 115 | 14.3 | 59 | 42.2 | 56 | 73 | 6.35 | 88.9 | 57.15 | 6.35 | 8.74 | |
| 1 1/2 | 40 | 125 | 15.9 | 65 | 48.3 | 60 | 82.5 | 6.35 | 98.4 | 65.07 | 6.35 | 8.74 | |
| 2 | 50 | 150 | 17.5 | 78 | 60.3 | 62 | 102 | 6.35 | 120.7 | 82.55 | 6.35 | 8.74 | |
| 2 1/2 | 65 | 180 | 20.7 | 90 | 73 | 68 | 121 | 6.35 | 139.7 | 101.6 | 6.35 | 8.74 | |
| 3 | 80 | 190 | 22.3 | 108 | 88.9 | 68 | 133 | 6.35 | 152.4 | 114.3 | 6.35 | 8.74 | |
| 3 1/2 | 90 | 215 | 22.3 | 122 | 101.6 | 70 | 154 | 6.35 | 177.8 | 131.78 | 6.35 | 8.74 | |
| 4 | 100 | 230 | 22.3 | 135 | 114.3 | 75 | 171 | 6.35 | 190.5 | 149.23 | 6.35 | 8.74 | |
| 5 | 125 | 255 | 22.3 | 164 | 141.3 | 87 | 194 | 6.35 | 215.9 | 171.45 | 6.35 | 8.74 | |
| 6 | 150 | 280 | 23.9 | 192 | 168.3 | 87 | 219 | 6.35 | 241.3 | 193.68 | 6.35 | 8.74 | |
| 8 | 200 | 345 | 27 | 246 | 219.1 | 100 | 273 | 6.35 | 298.5 | 247.65 | 6.35 | 8.74 | |
| 10 | 250 | 405 | 28.6 | 305 | 273 | 100 | 330 | 6.35 | 362 | 304.8 | 6.35 | 8.74 | |
| 12 | 300 | 485 | 30.2 | 365 | 323.8 | 113 | 406 | 6.35 | 431.8 | 381 | 6.35 | 8.74 | |
| 14 | 350 | 535 | 33.4 | 400 | 355.6 | 125 | 425 | 6.35 | 476.3 | 396.88 | 6.35 | 8.74 | |
| 16 | 400 | 595 | 35 | 457 | 406.4 | 125 | 483 | 6.35 | 539.8 | 454.03 | 6.35 | 8.74 | |
| 18 | 450 | 635 | 38.1 | 505 | 457.2 | 138 | 546 | 6.35 | 577.9 | 517.53 | 6.35 | 8.74 | |
| 20 | 500 | 700 | 41.3 | 559 | 508 | 143 | 597 | 6.35 | 635 | 558.8 | 6.35 | 8.74 | |
| 24 | 600 | 815 | 46.1 | 663 | 610 | 151 | 711 | 6.35 | 749.3 | 673.1 | 6.35 | 8.74 |
Class 300 RTJ Flanges Dimensions
| Size in Inches | Size in Millimeter | Outer Diameter (O.D.) | Thickness Of Flanges | Hub Outside Daimeter | Weld Neck Outside Daimeter | Lengtd Of Welding Neck | RTJ RF Diameter | Height Of RTJ RF | PCD | RTJ Pitch Diameter | RTJ Deptd | RTJ Width | Bore |
| A | B | C | D | E | F | G | H | I | J | K | L | ||
| 1/2 | 15 | 95 | 12.7 | 38 | 21.3 | 51 | 51 | 5.54 | 66.7 | 34.14 | 5.54 | 7.14 | |
| 3/4 | 20 | 115 | 14.3 | 48 | 26.7 | 56 | 63.5 | 6.35 | 82.6 | 42.88 | 6.35 | 8.74 | |
| 1 | 25 | 125 | 15.9 | 54 | 33.4 | 60 | 70 | 6.35 | 88.9 | 50.8 | 6.35 | 8.74 | |
| 1 1/4 | 32 | 135 | 17.5 | 64 | 42.2 | 64 | 79.5 | 6.35 | 98.4 | 60.33 | 6.35 | 8.74 | |
| 1 1/2 | 40 | 155 | 19.1 | 70 | 48.3 | 67 | 90.5 | 6.35 | 114.3 | 68.27 | 6.35 | 8.74 | |
| 2 | 50 | 165 | 20.7 | 84 | 60.3 | 68 | 108 | 7.92 | 127 | 82.55 | 7.92 | 11.91 | |
| 2 1/2 | 65 | 190 | 23.9 | 100 | 73 | 75 | 127 | 7.92 | 149.2 | 101.6 | 7.92 | 11.91 | |
| 3 | 80 | 210 | 27 | 117 | 88.9 | 78 | 146 | 7.92 | 168.3 | 123.83 | 7.92 | 11.91 | |
| 3 1/2 | 90 | 230 | 28.6 | 133 | 101.6 | 79 | 159 | 7.92 | 184.2 | 131.78 | 7.92 | 11.91 | |
| 4 | 100 | 255 | 30.2 | 146 | 114.3 | 84 | 175 | 7.92 | 200 | 149.23 | 7.92 | 11.91 | |
| 5 | 125 | 280 | 33.4 | 178 | 141.3 | 97 | 210 | 7.92 | 235 | 180.98 | 7.92 | 11.91 | |
| 6 | 150 | 320 | 35 | 206 | 168.3 | 97 | 241 | 7.92 | 269.9 | 211.12 | 7.92 | 11.91 | |
| 8 | 200 | 380 | 39.7 | 260 | 219.1 | 110 | 302 | 7.92 | 330.2 | 269.88 | 7.92 | 11.91 | |
| 10 | 250 | 445 | 46.1 | 321 | 273 | 116 | 356 | 7.92 | 387.4 | 323.85 | 7.92 | 11.91 | |
| 12 | 300 | 520 | 49.3 | 375 | 323.8 | 129 | 413 | 7.92 | 450.8 | 381 | 7.92 | 11.91 | |
| 14 | 350 | 585 | 52.4 | 425 | 355.6 | 141 | 457 | 7.92 | 514.4 | 419.1 | 7.92 | 11.91 | |
| 16 | 400 | 650 | 55.6 | 483 | 406.4 | 144 | 508 | 7.92 | 571.5 | 469.9 | 7.92 | 11.91 | |
| 18 | 450 | 710 | 58.8 | 533 | 457 | 157 | 575 | 7.92 | 628.6 | 533.4 | 7.92 | 11.91 | |
| 20 | 500 | 775 | 62 | 587 | 508 | 160 | 635 | 9.53 | 685.8 | 584.2 | 9.53 | 13.49 | |
| 24 | 600 | 915 | 68.3 | 702 | 610 | 167 | 749 | 11.13 | 812.8 | 692.15 | 11.13 | 16.66 |
Class 400 RTJ Flanges Dimensions
| Size in Inches | Size in Millimeter | Outer Diameter (O.D.) | Thickness Of Flanges | Hub Outside Daimeter | Weld Neck Outside Daimeter | Length Of Welding Neck | RTJ RF Diameter | Height Of RTJ RF | PCD | RTJ Pitch Diameter | RTJ Depth | RTJ Width | Bore |
| A | B | C | D | E | F | G | H | I | J | K | L | ||
| 1/2 | 15 | 95 | 14.3 | 38 | 21.3 | 52 | 51 | 5.54 | 66.7 | 34.14 | 5.54 | 7.14 | |
| 3/4 | 20 | 115 | 15.9 | 48 | 26.7 | 57 | 63.5 | 6.35 | 82.6 | 42.88 | 6.35 | 8.74 | |
| 1 | 25 | 125 | 17.5 | 54 | 33.4 | 62 | 70 | 6.35 | 88.9 | 50.8 | 6.35 | 8.74 | |
| 1 1/4 | 32 | 135 | 20.7 | 64 | 42.2 | 67 | 79.5 | 6.35 | 98.4 | 60.33 | 6.35 | 8.74 | |
| 1 1/2 | 40 | 155 | 22.3 | 70 | 48.3 | 70 | 90.5 | 6.35 | 114.3 | 68.27 | 6.35 | 8.74 | |
| 2 | 50 | 165 | 25.4 | 84 | 60.3 | 73 | 108 | 7.92 | 127 | 82.55 | 7.92 | 11.9 | |
| 2 1/2 | 65 | 190 | 28.6 | 100 | 73 | 79 | 127 | 7.92 | 149.2 | 101.6 | 7.92 | 11.9 | |
| 3 | 80 | 210 | 31.8 | 117 | 88.9 | 83 | 146 | 7.92 | 168.3 | 123.83 | 7.92 | 11.9 | |
| 3 1/2 | 90 | 230 | 35 | 133 | 101.6 | 86 | 159 | 7.92 | 184.2 | 131.78 | 7.92 | 11.9 | |
| 4 | 100 | 255 | 35 | 146 | 114.3 | 89 | 175 | 7.92 | 200 | 149.23 | 7.92 | 11.91 | |
| 5 | 125 | 280 | 38.1 | 178 | 141.3 | 102 | 210 | 7.92 | 235 | 180.98 | 7.92 | 11.91 | |
| 6 | 150 | 320 | 41.3 | 206 | 168.3 | 103 | 241 | 7.92 | 269.9 | 211.12 | 7.92 | 11.91 | |
| 8 | 200 | 380 | 47.7 | 260 | 219.1 | 117 | 302 | 7.92 | 330 | 269.88 | 7.92 | 11.91 | |
| 10 | 250 | 445 | 54 | 321 | 273 | 124 | 356 | 7.92 | 387.4 | 323.85 | 7.92 | 11.91 | |
| 12 | 300 | 520 | 57.2 | 375 | 323.8 | 137 | 413 | 7.92 | 450.8 | 381 | 7.92 | 11.91 | |
| 14 | 350 | 585 | 60.4 | 425 | 355.6 | 149 | 457 | 7.92 | 514.4 | 419.1 | 7.92 | 11.91 | |
| 16 | 400 | 650 | 63.5 | 483 | 406.4 | 152 | 508 | 7.92 | 571.5 | 469.9 | 7.92 | 11.91 | |
| 18 | 450 | 710 | 66.7 | 533 | 457 | 165 | 575 | 7.92 | 628.6 | 533.4 | 7.92 | 11.91 | |
| 20 | 500 | 775 | 69.9 | 587 | 508 | 168 | 635 | 9.53 | 685.8 | 584.2 | 9.53 | 13.49 | |
| 24 | 600 | 915 | 76.2 | 702 | 610 | 175 | 749 | 11.13 | 812.8 | 692.15 | 11.13 | 16.66 |
Class 600 RTJ Flanges Dimensions
| Size in Inches | Size in Millimeter | Outer Diameter (O.D.) | Thickness Of Flanges | Hub Outside Daimeter | Weld Neck Outside Daimeter | Length Of Welding Neck | RTJ RF Diameter | Height Of RTJ RF | PCD | RTJ Pitch Diameter | RTJ Depth | RTJ Width | Bore |
| A | B | C | D | E | F | G | H | I | J | K | L | ||
| 1/2 | 15 | 95 | 14.3 | 38 | 21.3 | 52 | 51 | 5.54 | 66.7 | 34.14 | 5.54 | 7.14 | |
| 3/4 | 20 | 115 | 15.9 | 48 | 26.7 | 57 | 63.5 | 6.35 | 82.6 | 42.88 | 6.35 | 8.74 | |
| 1 | 25 | 125 | 17.5 | 54 | 33.4 | 62 | 70 | 6.35 | 88.9 | 50.8 | 6.35 | 8.74 | |
| 1 1/4 | 32 | 135 | 20.7 | 64 | 42.2 | 67 | 79.5 | 6.35 | 98.4 | 60.33 | 6.35 | 8.74 | |
| 1 1/2 | 40 | 155 | 22.3 | 70 | 48.3 | 70 | 90.5 | 6.35 | 114.3 | 68.27 | 6.35 | 8.74 | |
| 2 | 50 | 165 | 25.4 | 84 | 60.3 | 73 | 108 | 7.92 | 127 | 82.55 | 7.92 | 11.91 | |
| 2 1/2 | 65 | 190 | 28.6 | 100 | 73 | 79 | 127 | 7.92 | 149.2 | 101.6 | 7.92 | 11.91 | |
| 3 | 80 | 210 | 31.8 | 117 | 88.9 | 83 | 146 | 7.92 | 168.3 | 123.83 | 7.92 | 11.91 | |
| 3 1/2 | 90 | 230 | 35 | 133 | 101.6 | 86 | 159 | 7.92 | 184.2 | 131.78 | 7.92 | 11.91 | |
| 4 | 100 | 275 | 38.1 | 152 | 114.3 | 102 | 175 | 7.92 | 215.9 | 149.23 | 7.92 | 11.91 | |
| 5 | 125 | 330 | 44.5 | 189 | 141.3 | 114 | 210 | 7.92 | 266.7 | 180.98 | 7.92 | 11.91 | |
| 6 | 150 | 355 | 47.7 | 222 | 168.3 | 117 | 241 | 7.92 | 292.1 | 211.12 | 7.92 | 11.91 | |
| 8 | 200 | 420 | 55.6 | 273 | 219.1 | 133 | 302 | 7.92 | 349.2 | 269.88 | 7.92 | 11.91 | |
| 10 | 250 | 510 | 63.5 | 343 | 273 | 152 | 356 | 7.92 | 431.8 | 323.85 | 7.92 | 11.91 | |
| 12 | 300 | 560 | 66.7 | 400 | 323.8 | 156 | 413 | 7.92 | 489 | 381 | 7.92 | 11.91 | |
| 14 | 350 | 605 | 69.9 | 432 | 355.6 | 165 | 457 | 7.92 | 527 | 419.1 | 7.92 | 11.91 | |
| 16 | 400 | 685 | 76.2 | 495 | 406.4 | 178 | 508 | 7.92 | 603.2 | 469.9 | 7.92 | 11.91 | |
| 18 | 450 | 745 | 82.6 | 546 | 457 | 184 | 575 | 7.92 | 654 | 533.4 | 7.92 | 11.91 | |
| 20 | 500 | 815 | 88.9 | 610 | 508 | 190 | 635 | 9.53 | 723.9 | 584.2 | 9.53 | 13.49 | |
| 24 | 600 | 940 | 101.6 | 718 | 610 | 203 | 749 | 11.13 | 838.2 | 692.15 | 11.13 | 16.66 |
Class 900 RTJ Flanges Dimensions
| Size in Inches | Size in Millimeter | Outer Diameter (O.D.) | Thickness Of Flanges | Hub Outside Daimeter | Weld Neck Outside Daimeter | Length Of Welding Neck | RTJ RF Diameter | Height Of RTJ RF | PCD | RTJ Pitch Diameter | RTJ Depth | RTJ Width | Bore |
| A | B | C | D | E | F | G | H | I | J | K | L | ||
| 1/2 | 15 | 120 | 22.3 | 38 | 21.3 | 60 | 60.5 | 6.35 | 82.6 | 39.67 | 6.35 | 8.74 | |
| 3/4 | 20 | 130 | 25.4 | 44 | 26.7 | 70 | 66.5 | 6.35 | 88.9 | 44.45 | 6.35 | 8.74 | |
| 1 | 25 | 150 | 28.6 | 52 | 33.4 | 73 | 71.5 | 6.35 | 101.6 | 50.8 | 6.35 | 8.74 | |
| 1 1/4 | 32 | 160 | 28.6 | 64 | 42.2 | 73 | 81 | 6.35 | 111.1 | 60.33 | 6.35 | 8.74 | |
| 1 1/2 | 40 | 180 | 31.8 | 70 | 48.3 | 83 | 92 | 6.35 | 123.8 | 68.27 | 6.35 | 8.74 | |
| 2 | 50 | 215 | 38.1 | 105 | 60.3 | 102 | 124 | 7.92 | 165.1 | 95.25 | 7.92 | 11.91 | |
| 2 1/2 | 65 | 245 | 41.3 | 124 | 73 | 105 | 137 | 7.92 | 190.5 | 107.95 | 7.92 | 11.91 | |
| 3 | 80 | 240 | 38.1 | 127 | 88.9 | 102 | 156 | 7.92 | 190.5 | 123.83 | 7.92 | 11.91 | |
| 4 | 100 | 290 | 44.5 | 159 | 114.3 | 114 | 181 | 7.92 | 235 | 149.23 | 7.92 | 11.91 | |
| 5 | 125 | 350 | 50.8 | 190 | 141.3 | 127 | 216 | 7.92 | 279.4 | 180.98 | 7.92 | 11.91 | |
| 6 | 150 | 380 | 55.6 | 235 | 168.3 | 140 | 241 | 7.92 | 317.5 | 211.12 | 7.92 | 11.91 | |
| 8 | 200 | 470 | 63.5 | 298 | 219.1 | 162 | 308 | 7.92 | 393.7 | 269.88 | 7.92 | 11.91 | |
| 10 | 250 | 545 | 69.9 | 368 | 273 | 184 | 362 | 7.92 | 469.9 | 323.85 | 7.92 | 11.91 | |
| 12 | 300 | 610 | 79.4 | 419 | 323.8 | 200 | 419 | 7.92 | 533.4 | 381 | 7.92 | 11.91 | |
| 14 | 350 | 640 | 85.8 | 451 | 355.6 | 213 | 467 | 11.13 | 558.8 | 419.1 | 11.13 | 16.66 | |
| 16 | 400 | 705 | 88.9 | 508 | 406.4 | 216 | 524 | 11.13 | 616 | 469.9 | 11.13 | 16.66 | |
| 18 | 450 | 785 | 101.6 | 565 | 457 | 229 | 594 | 12.7 | 685.8 | 533.4 | 12.7 | 19.84 | |
| 20 | 500 | 855 | 108 | 622 | 508 | 248 | 648 | 12.7 | 749.3 | 584.2 | 12.7 | 19.84 | |
| 24 | 600 | 1040 | 139.7 | 749 | 610 | 292 | 772 | 15.88 | 901.7 | 692.15 | 15.88 | 26.97 |
Class 1500 RTJ Flanges Dimensions
| Size in Inches | Size in Millimeter | Outer Diameter (O.D.) | Thickness Of Flanges | Hub Outside Daimeter | Weld Neck Outside Daimeter | Length Of Welding Neck | RTJ RF Diameter | Height Of RTJ RF | PCD | RTJ Pitch Diameter | RTJ Depth | RTJ Width | Bore |
| A | B | C | D | E | F | G | H | I | J | K | L | ||
| 1/2 | 15 | 120 | 22.3 | 38 | 21.3 | 60 | 60.5 | 6.35 | 82.6 | 39.67 | 6.35 | 8.74 | |
| 3/4 | 20 | 130 | 25.4 | 44 | 26.7 | 70 | 66.5 | 6.35 | 88.9 | 44.45 | 6.35 | 8.74 | |
| 1 | 25 | 150 | 28.6 | 52 | 33.4 | 73 | 71.5 | 6.35 | 101.6 | 50.8 | 6.35 | 8.74 | |
| 1 1/4 | 32 | 160 | 28.6 | 64 | 42.2 | 73 | 81 | 6.35 | 111.1 | 60.33 | 6.35 | 8.74 | |
| 1 1/2 | 40 | 180 | 31.8 | 70 | 48.3 | 83 | 92 | 6.35 | 123.8 | 68.27 | 6.35 | 8.74 | |
| 2 | 50 | 215 | 38.1 | 105 | 60.3 | 102 | 124 | 7.92 | 165.1 | 95.25 | 7.92 | 11.91 | |
| 2 1/2 | 65 | 245 | 41.3 | 124 | 73 | 105 | 137 | 7.92 | 190.5 | 107.95 | 7.92 | 11.91 | |
| 3 | 80 | 265 | 47.7 | 133 | 88.9 | 117 | 168 | 7.92 | 203.2 | 136.53 | 7.92 | 11.91 | |
| 4 | 100 | 310 | 54 | 162 | 114.3 | 124 | 194 | 7.92 | 241.3 | 161.93 | 7.92 | 11.91 | |
| 5 | 125 | 375 | 73.1 | 197 | 141.3 | 156 | 229 | 7.92 | 292.1 | 193.68 | 7.92 | 11.91 | |
| 6 | 150 | 395 | 82.6 | 229 | 168.3 | 171 | 248 | 9.53 | 317.5 | 211.14 | 9.53 | 13.49 | |
| 8 | 200 | 485 | 92.1 | 292 | 219.1 | 213 | 318 | 11.13 | 393.7 | 269.88 | 11.13 | 16.66 | |
| 10 | 250 | 585 | 108 | 368 | 273 | 254 | 371 | 11.13 | 482.6 | 323.85 | 11.13 | 16.66 | |
| 12 | 300 | 675 | 123.9 | 451 | 323.8 | 283 | 438 | 14.27 | 571.5 | 381 | 14.27 | 23.01 | |
| 14 | 350 | 750 | 133.4 | 495 | 355.6 | 298 | 489 | 15.88 | 635 | 419.1 | 15.88 | 26.97 | |
| 16 | 400 | 825 | 146.1 | 552 | 406.4 | 311 | 546 | 17.48 | 704.8 | 469.9 | 17.48 | 30.18 | |
| 18 | 450 | 915 | 162 | 597 | 457 | 327 | 613 | 17.48 | 774.7 | 533.4 | 17.48 | 30.18 | |
| 20 | 500 | 985 | 177.8 | 641 | 508 | 356 | 673 | 17.48 | 831.8 | 584.2 | 17.48 | 33.32 | |
| 24 | 600 | 1170 | 203.2 | 762 | 610 | 406 | 794 | 20.62 | 990.6 | 692.15 | 20.62 | 36.53 |
Class 2500 RTJ Flanges Dimensions
| Size in Inches | Size in Millimeter | Outer Diameter (O.D.) | Thickness Of Flanges | Hub Outside Daimeter | Weld Neck Outside Daimeter | Length Of Welding Neck | RTJ RF Diameter | Height Of RTJ RF | PCD | RTJ Pitch Diameter | RTJ Depth | RTJ Width | Bore |
| A | B | C | D | E | F | G | H | I | J | K | L | ||
| 1/2 | 15 | 135 | 30.2 | 43 | 21.3 | 73 | 65 | 6.35 | 88.9 | 42.88 | 6.35 | 8.74 | |
| 3/4 | 20 | 140 | 31.8 | 51 | 26.7 | 79 | 73 | 6.35 | 95.2 | 50.8 | 6.35 | 8.74 | |
| 1 | 25 | 160 | 35 | 57 | 33.4 | 89 | 82.5 | 6.35 | 108 | 60.33 | 6.35 | 8.74 | |
| 1 1/4 | 32 | 185 | 38.1 | 73 | 42.2 | 95 | 102 | 7.92 | 130.2 | 72.23 | 7.92 | 11.91 | |
| 1 1/2 | 40 | 205 | 44.5 | 79 | 48.3 | 111 | 114 | 7.92 | 146 | 82.55 | 7.92 | 11.91 | |
| 2 | 50 | 235 | 50.9 | 95 | 60.3 | 127 | 133 | 7.92 | 171.4 | 101.6 | 7.92 | 11.91 | |
| 2 1/2 | 65 | 265 | 57.2 | 114 | 73 | 143 | 149 | 9.53 | 196.8 | 111.13 | 9.52 | 13.49 | |
| 3 | 80 | 305 | 66.7 | 133 | 88.9 | 168 | 168 | 9.53 | 228.6 | 127 | 9.52 | 13.49 | |
| 4 | 100 | 355 | 76.2 | 165 | 114.3 | 190 | 203 | 11.13 | 273 | 157.18 | 11.13 | 16.66 | |
| 5 | 125 | 420 | 92.1 | 203 | 141.3 | 229 | 241 | 12.7 | 323.8 | 190.5 | 12.7 | 19.84 | |
| 6 | 150 | 485 | 108 | 235 | 168.3 | 273 | 279 | 12.7 | 368.3 | 228.6 | 12.7 | 19.84 | |
| 8 | 200 | 550 | 127 | 305 | 219.1 | 318 | 340 | 14.27 | 438.2 | 279.4 | 14.27 | 23.01 | |
| 10 | 250 | 675 | 165.1 | 375 | 273 | 419 | 425 | 17.48 | 539.8 | 342.9 | 17.48 | 30.18 | |
| 12 | 300 | 760 | 184.2 | 441 | 323.8 | 464 | 495 | 17.48 | 619.1 | 406.4 | 17.48 | 33.32 |
Size Of RTJ Flange
| Nominal Pipe Size | Groove Dimensions | Diameter of Raised Portion K | |||||||||||||||
| 150 PSI | 300 PSI | 400 PSI | 600 PSI | 900 PSI | 1500 PSI | 2500 PSI | Groove # | Pitch Dia | Depth | Width | Radius at Bottom | 150 PSI | 300 400 600 PSI | 900 PSI | 1500 PSI | 2500 PSI | Depth |
| P | E | F | R | E | |||||||||||||
| 6 | R46 | 8-5/16 | 3/8 | 17/32 | 1/16 | 9-3/4 | 3/8 | ||||||||||
| 6 | 47 | 9 | 1/2 | 25/32 | 1/16 | 11 | 1/2 | ||||||||||
| 8 | 48 | 9-3/4 | 1/4 | 11/32 | 1/32 | 10-3/4 | 1/4 | ||||||||||
| 8 | 8 | 8 | 8 | 49 | 10-5/8 | 5/16 | 15/32 | 1/32 | 11-7/8 | 12-1/8 | 5/16 | ||||||
| ……. | 8 | 50 | 10-5/8 | 7/16 | 21/32 | 1/16 | 12-1/2 | 7/16 | |||||||||
| 8 | 51 | 11 | 9/16 | 29/32 | 1/16 | 13-3/8 | 9/16 | ||||||||||
| 10 | 52 | 12 | 1/4 | 11/32 | 1/32 | 13 | 1/4 | ||||||||||
| 10 | 10 | 10 | 10 | 53 | 12-3/4 | 5/16 | 15/32 | 1/32 | 14 | 14-1/4 | 5/16 | ||||||
| 10 | 54 | 12-3/4 | 7/16 | 21/32 | 1/16 | 14-5/8 | 7/16 | ||||||||||
| 10 | 55 | 13-1/2 | 11/16 | 1-3/16 | 3/32 | 16-3/4 | 11/16 | ||||||||||
| 12 | 56 | 15 | 1/4 | 11/32 | 1/32 | 16 | 1/4 | ||||||||||
| 12 | 12 | 12 | 12 | 57 | 15 | 5/16 | 15/32 | 1/32 | 16-1/4 | 16-1/2 | 5/16 | ||||||
| 12 | 58 | 15 | 9/16 | 29/32 | 1/16 | 17-1/4 | 9/16 | ||||||||||
| 14 | 59 | 15-5/8 | 1/4 | 11/32 | 1/32 | 16-3/4 | 1/4 | ||||||||||
| 12 | 60 | 16 | 11/16 | 1-5/16 | 3/32 | 19-1/2 | 11/16 | ||||||||||
| 14 | 14 | 14 | 61 | 16-1/2 | 5/16 | 15/32 | 1/32 | 18 | 5/16 | ||||||||
| 14 | 62 | 16-1/2 | 7/16 | 21/32 | 1/16 | 18-3/8 | 7/16 | ||||||||||
| 14 | 63 | 16-1/2 | 5/8 | 1-1/16 | 3/32 | 19-1/4 | 5/8 | ||||||||||
| 16 | 64 | 17-7/8 | 1/4 | 11/32 | 1/32 | 19 | 1/4 | ||||||||||
| 16 | 16 | 16 | 65 | 18-1/2 | 5/16 | 15/32 | 1/32 | 20 | 5/16 | ||||||||
| 16 | 66 | 18-1/2 | 7/16 | 21/32 | 1/16 | 20-5/8 | 7/16 | ||||||||||
| 16 | 67 | 18-1/2 | 11/16 | 1-3/16 | 3/32 | 21-1/2 | 11/16 | ||||||||||
| 18 | 68 | 20-3/8 | 1/4 | 11/32 | 1/32 | 21-1/2 | 1/4 | ||||||||||
| 18 | 18 | 18 | 69 | 21 | 5/16 | 15/32 | 1/32 | 22-5/8 | 5/16 | ||||||||
| 18 | 70 | 21 | 1/2 | 25/32 | 1/16 | 23-3/8 | 1/2 | ||||||||||
| 18 | 71 | 21 | 11/16 | 1-3/16 | 3/32 | 24-1/8 | 11/16 | ||||||||||
| 20 | 20 | 72 | 22 | 1/4 | 11/33 | 1/32 | 23-1/2 | 1/4 | |||||||||
| 20 | 20 | 73 | 23 | 3/8 | 17/32 | 1/16 | 25 | 3/8 | |||||||||
| 20 | 74 | 23 | 1/2 | 25/32 | 1/16 | 25-1/2 | 1/2 | ||||||||||
| 20 | 75 | 23 | 11/16 | 1-5/16 | 3/32 | - | 26-1/2 | 11/16 | |||||||||
| 24 | 76 | 26-1/2 | 1/4 | 11/32 | 1/32 | 28 | 1/4 | ||||||||||
| 24 | 24 | 24 | 77 | 27-1/4 | 7/16 | 21/32 | 1/16 | 29-1/2 | 7/16 | ||||||||
| 24 | 78 | 27-1/4 | 5/8 | 1-1/16 | 3/32 | 30-3/8 | 5/8 | ||||||||||
| 24 | 79 | 27-1/4 | 13/16 | 17/16 | 3/32 | 31-1/4 | 13/16 | ||||||||||
Weight Chart Of RTJ Flange
| Nominal Pipe Size | Diameter of Pipe | Flange I.D | No. of holes | Flange Dia | Thk of Flange | Dia of Bolt Circle | Dia of Bolt Holes | Approx.Weight | |
| DN | ISO | DIN | D5 | BN | D | b | K | d2 | KG/PCS |
| 10 | - | 14 | 14.5 | 4 | 90 | 16 | 60 | 14 | 0.7 |
| 17.2 | - | 17.7 | 4 | 90 | 16 | 60 | 14 | 0.69 | |
| 15 | - | 20 | 21 | 4 | 95 | 16 | 65 | 14 | 0.77 |
| 21.3 | - | 22 | 4 | 95 | 16 | 65 | 14 | 0.77 | |
| 20 | - | 25 | 26 | 4 | 105 | 18 | 75 | 14 | 1.06 |
| 26.9 | - | 27.6 | 4 | 105 | 18 | 75 | 14 | 1.05 | |
| 25 | - | 30 | 31 | 4 | 115 | 18 | 85 | 14 | 1.27 |
| 33.7 | - | 34.4 | 4 | 115 | 18 | 85 | 14 | 1.25 | |
| 32 | - | 38 | 39 | 4 | 140 | 18 | 100 | 18 | 1.86 |
| 42.4 | - | 43.1 | 4 | 140 | 18 | 100 | 18 | 1.83 | |
| 40 | - | 44.5 | 45.5 | 4 | 150 | 18 | 110 | 18 | 2.12 |
| 48.3 | - | 49 | 4 | 150 | 18 | 110 | 18 | 2.09 | |
| 50 | - | 57 | 58.1 | 4 | 165 | 20 | 125 | 18 | 2.78 |
| 60.3 | - | 61.1 | 4 | 165 | 20 | 125 | 18 | 2.74 | |
| 65 | 76.1 | - | 77.1 | 8 | 185 | 22 | 145 | 18 | 3.48 |
| 80 | 88.9 | - | 90.3 | 8 | 200 | 24 | 160 | 18 | 4.33 |
| 100 | - | 108 | 109.6 | 8 | 235 | 24 | 190 | 22 | 5.82 |
| 114.3 | - | 115.9 | 8 | 235 | 24 | 190 | 22 | 5.61 | |
| 125 | - | 133 | 134.8 | 8 | 270 | 26 | 220 | 26 | 7.91 |
| 139.7 | - | 141.6 | 8 | 270 | 26 | 220 | 26 | 7.6 | |
| 150 | - | 159 | 161.1 | 8 | 300 | 28 | 250 | 26 | 10.12 |
| 168.3 | - | 170.5 | 8 | 300 | 28 | 250 | 26 | 9.58 | |
| 175 | 193.7 | - | 196.1 | 12 | 350 | 32 | 295 | 30 | 14.45 |
| 200 | 219.1 | - | 221.8 | 12 | 375 | 34 | 320 | 30 | 16.9 |
| 250 | - | 267 | 270.2 | 12 | 450 | 38 | 385 | 33 | 27.28 |
| 273 | - | 276.2 | 12 | 450 | 38 | 385 | 33 | 26.51 | |
| 300 | 323.9 | - | 327.6 | 16 | 515 | 42 | 450 | 33 | 36.38 |
| 350 | 355.6 | - | 359.7 | 16 | 580 | 46 | 510 | 36 | 52.83 |
| - | 368 | 372.2 | 16 | 580 | 46 | 510 | 36 | 50.24 | |
| 400 | 406.4 | - | 411 | 16 | 660 | 50 | 585 | 39 | 74.71 |
| - | 419 | 423.7 | 16 | 660 | 50 | 585 | 39 | 71.44 | |
| 500 | 508 | - | 513.6 | 20 | 755 | 52 | 670 | 42 | 86.87 |
| 600 | 610 | - | 616.5 | 20 | 890 | 54 | 795 | 48 | 121.84 |
| 700 | 711 | - | 716 | 24 | 995 | 58 | 900 | 48 | 150.93 |
| 800 | 813 | - | 818 | 24 | 1140 | 64 | 1030 | 56 | 219.08 |
| 900 | 914 | - | 920 | 28 | 1250 | 70 | 1140 | 56 | 271.16 |
| 1000 | 1016 | - | 1022 | 28 | 1360 | 78 | 1250 | 56 | 344.95 |
Pressure Rating Of RTJ Flange
| Temperature (°C) | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
| -29 - 38 | 19.8 | 51.7 | 68.9 | 103.4 | 155 | 259 | 431 |
| 50 | 19.5 | 51.7 | 68.9 | 103.4 | 155 | 259 | 431 |
| 100 | 17.7 | 51.5 | 68.7 | 103.0 | 155 | 258 | 429 |
| 150 | 15.8 | 50.2 | 66.8 | 100.3 | 151 | 251 | 418 |
| 200 | 13.8 | 48.6 | 64.8 | 97.2 | 146 | 243 | 405 |
| 250 | 12.1 | 46.3 | 61.7 | 92.7 | 139 | 232 | 386 |
| 300 | 10.2 | 42.9 | 57.0 | 85.7 | 129 | 214 | 357 |
| 325 | 9.3 | 41.4 | 55.0 | 82.6 | 124 | 207 | 344 |
| 350 | 8.4 | 40.0 | 53.4 | 80.0 | 120 | 200 | 334 |
| 375 | 7.4 | 37.8 | 50.4 | 75.7 | 114 | 189 | 315 |
| 400 | 6.5 | 34.7 | 46.3 | 69.4 | 104 | 174 | 290 |
| 425 | 5.5 | 28.8 | 38.4 | 57.5 | 86.3 | 144 | 240 |
| 450 | 4.6 | 23.0 | 30.7 | 46.0 | 69.0 | 115 | 192 |
| 475 | 3.7 | 17.1 | 22.8 | 34.2 | 51.3 | 85.4 | 142 |
| 500 | 2.8 | 11.6 | 15.4 | 23.2 | 34.7 | 57.9 | 96.5 |
| 538 | 1.4 | 5.9 | 7.9 | 11.8 | 17.7 | 29.5 | 49.2 |
Price Of RTJ Flange
| Stainless Steel Flanges | USD $2.05 - $10.06 / Piece (FOB Price) on request |
| High Nickel Alloys Flanges | USD $8.10 - $20.20 / Piece (FOB Price) on request |
| Duplex & Super Duplex Flange | USD $10.20 - $35.50 / Piece (FOB Price) on request |
| Cupro Nickel Flanges | USD $5.19 - $10.48 / Piece (FOB Price) on request |
| Carbon Steel Flanges | USD $2.08 - $7.10 / Piece (FOB Price) on request |
Application Of RTJ Flange
We make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers.
- Petrochemical Industries
- Power Generation Industries
- Food Processing Industries
- Oil & Gas Industries
- Sugar Industries
Testing Of RTJ Flange
We known for its accurate and perfect dimensions. We thoroughly test all our products before shipping them to the customers. We carry out destructive as well as non-destructive tests on all our products.
- Eddy Current Examining
- Hydrostatic Analysis
- Pitting Protection Test
- Power Generation Industries
- Positive Material Recognition
Packing Of RTJ Flange
We uses the most safest and the most effective ways of packaging for all types of deliveries. We pack our goods in various ways such as:
- Wooden Boxes
- Wooden Pallets
- Shrink-Wrapped
- Carton Boxes
- Wooden crates
People Also Search
Cities We Delivered
Country We Delivered
People Also Search
ASME SA182 SS 316 RTJ Flange Price Per Kg, UNS N08904 RTJ Flange Weight Calculator, ASME SA182 Duplex 2205 RTJ Flange At Factory Price, 2507 Super Duplex RTJ Flange At Factory Price, Inconel 625 RTJ Flange At Factory Price, DIN 1.4301 RTJ Flange Catalogue, UNS S30400 RTJ Flange Price List In India.
Cities We Delivered
ASME SA182 Duplex 2205 RTJ Flange Stockist in Chennai, UNS N06625 RTJ Flange Stockist in Bangalore, 2507 Super Duplex RTJ Flange Supplier in Pune, Inconel 625 RTJ Flange Supplier in Hyderabad, WRN 2.4856 RTJ Flange Manufacturer in Vadodara, 304 Stainless Steel RTJ Flange Stockist in Bharuch, Duplex 31803 RTJ Flange Stockist in Nashik.
Country We Delivered
ASME SA182 Duplex 2205 RTJ Flange Stockist in UAE, WRN 2.4856 RTJ Flange Manufacturer in Vietnam, UNS S30400 RTJ Flange Manufacturer in Singapore, DIN 1.4301 RTJ Flange Stockist in Malaysia, Inconel 625 RTJ Flange Exporter in Indonesia, 2507 Super Duplex RTJ Flange Supplier in Qatar, UNS N06625 RTJ Flange Exporter in South Africa.
Types of Flanges
- Forge Flange
- Blind Flange
- Slip On Flange
- Weldneck Flange
- Lap Joint Flange
- Threaded Flange
- Socketweld Flange
- Long Weld Neck Flange
- Weldo / Nipo Flange
- Orifice Flange
- Reducing Flange
- Flat Flange
- Loose Flange
- RTJ Flanges
- SORF Flanges
- Square Flanges
- SWRF Flanges
- Expander Flanges
- WNRF Flanges
- Ring Type Joint Flanges
- Groove & Tongue Flanges
- Spectacle Blind Flanges
- Weld Neck Flanges A / B Flanges
- Spades Ring Spacers Flanges
- Screwed Flanges
- Forging Facing Flanges
- Flanges Bolts
