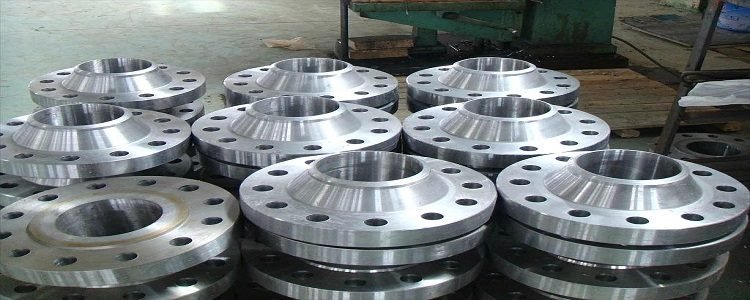

WNRF Flanges
ASME SA182 Duplex 2205 WNRF Flanges, ASME SA182 SS 316 WNRF Flanges, DIN 1.4301 WNRF Flanges, UNS S30400 WNRF Flanges, UNS N08904 WNRF Flanges.
About WNRF Flanges
NISSAN STEEL Manufacturer supplier of SS, High nickel and Duplex / Super duplex Flanges, for enquiry contact on email: sales@nissansteel.com, export@nissansteel.com, nissansteels@gmail.com
UNS S30400 WNRF Flanges Manufacturer, DIN 1.4301 WNRF Flanges Stockist, 2507 Super Duplex WNRF Flanges Supplier.
Specification of WNRF Flanges
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Weld Neck Flanges |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Weld Neck Flanges |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar Weld Neck Flanges |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Weld Neck Flanges |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized Weld Neck Flanges |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar Weld Neck Flanges |
| Most common types of Weld Neck Flanges | Forged / Threaded / Screwed / Plate |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
Dimensions Standard Of WNRF Flanges
Class 150 WNRF Flange Dimensions
| Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub | Diameter of Raised Face | Hub Diam. Chamfer of W.N | Lengtd Hub.Y | Bore | Diam. of Bolt Circle | Diam. of Bolt Holes | Number of Bolts | Diam. of Bolts (inch) | Approx. Weight | ||
| inch | dn | O | C | X | G | A | Y | B | BC | BH | BN | BD | KG | LB |
| 1/2″ | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 21.30 | 47.80 | 15.80 | 60.50 | 15.80 | 4 | 1/2″ | 0.7 | 1.5 |
| 3/4″ | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 26.70 | 52.30 | 20.80 | 69.90 | 15.80 | 4 | 1/2″ | 0.8 | 1.8 |
| 1″ | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 33.50 | 55.60 | 26.70 | 79.30 | 15.80 | 4 | 1/2″ | 1.1 | 2.4 |
| 1-1/4″ | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 42.20 | 57.20 | 35.10 | 88.90 | 15.80 | 4 | 1/2″ | 1.5 | 3.3 |
| 1-1/2″ | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 48.30 | 62.00 | 40.90 | 98.60 | 15.80 | 4 | 1/2″ | 1.8 | 4 |
| 2″ | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 60.50 | 63.50 | 52.60 | 120.70 | 19.10 | 4 | 5/8″ | 2.7 | 6 |
| 2-1/2″ | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 73.20 | 69.90 | 62.70 | 139.70 | 19.10 | 4 | 5/8″ | 4.4 | 9.8 |
| 3″ | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 88.90 | 69.90 | 78.00 | 152.40 | 19.10 | 4 | 5/8″ | 5.2 | 11.5 |
| 3-1/2″ | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 101.60 | 71.40 | 90.20 | 177.80 | 19.10 | 8 | 5/8″ | 6.4 | 14.2 |
| 4″ | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 114.30 | 76.20 | 102.40 | 190.50 | 19.10 | 8 | 5/8″ | 7.5 | 16.6 |
| 5″ | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 141.20 | 88.90 | 128.30 | 215.90 | 22.40 | 8 | 3/4″ | 9.2 | 20.2 |
| 6″ | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 168.40 | 88.90 | 154.20 | 241.30 | 22.40 | 8 | 3/4″ | 11 | 24.3 |
| 8″ | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 219.20 | 101.60 | 202.70 | 298.50 | 22.40 | 8 | 3/4″ | 18.4 | 40.6 |
| 10″ | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 273.10 | 101.60 | 254.50 | 362.00 | 25.40 | 12 | 7/8″ | 25.5 | 56.2 |
| 12″ | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 323.90 | 114.30 | 304.80 | 431.80 | 25.40 | 12 | 7/8″ | 37 | 81.4 |
| 14″ | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 355.60 | 127.00 | 476.30 | 28.50 | 12 | 1″ | 51 | 113 | |
| 16″ | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 406.40 | 127.00 | 539.80 | 28.50 | 16 | 1″ | 61.5 | 136 | |
| 18″ | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 457.20 | 139.70 | 577.90 | 31.80 | 16 | 1 1/8″ | 71.5 | 158 | |
| 20″ | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 508.00 | 144.50 | 635.00 | 31.80 | 20 | 1 1/8″ | 85 | 187 | |
| 24″ | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 609.60 | 152.40 | 749.30 | 35.10 | 20 | 1 1/4″ | 119 | 262 | |
Class 300 WNRF Flange Dimensions
| Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub | Diameter of Raised Face | Hub Diam. Chamfer of W.N | Lengtd Hub.Y | Bore | Diam. of Bolt Circle | Diam. of Bolt Holes | Number of Bolts | Diam. of Bolts (inch) | Approx. Weight | ||
| inch | dn | O | C | X | G | A | Y | B | BC | BH | BN | BD | KG/PCS | LB/PCS |
| 1/2″ | 15 | 95.5 | 14.2 | 38.1 | 35.1 | 21.3 | 52.3 | 15.7 | 66.5 | 15.7 | 4 | 1/2″ | 0.8 | 1.8 |
| 3/4″ | 20 | 117. 5 | 15.7 | 47.8 | 42.9 | 26.7 | 57.2 | 20.8 | 82.6 | 19.1 | 4 | 5/8″ | 1.4 | 3.1 |
| 1″ | 25 | 124. 0 | 17.5 | 53.8 | 50.8 | 33.5 | 62 | 26.7 | 88.9 | 19.1 | 4 | 5/8″ | 1.7 | 3.7 |
| 1-1/4″ | 32 | 133. 5 | 19.1 | 63.5 | 63.5 | 42.2 | 65 | 35.1 | 98.6 | 19.1 | 4 | 5/8″ | 2.2 | 4.8 |
| 1-1/2″ | 40 | 155. 5 | 20.6 | 69.9 | 73.2 | 48.3 | 68.3 | 40.9 | 114.3 | 22.4 | 4 | 5/8″ | 3.2 | 7 |
| 2″ | 50 | 165. 0 | 22.4 | 84.1 | 91.9 | 60.5 | 69.9 | 52.6 | 127 | 19.1 | 8 | 5/8″ | 3.6 | 7.9 |
| 2-1/2″ | 65 | 190. 5 | 25.4 | 100.1 | 104.6 | 73.2 | 76.2 | 62.7 | 149.4 | 22.4 | 8 | 3/4″ | 5.4 | 12 |
| 3″ | 80 | 209. 5 | 28.4 | 117.3 | 127 | 88.9 | 79.2 | 78 | 168.1 | 22.4 | 8 | 3/4″ | 7.3 | 16.1 |
| 3-1/2″ | 90 | 228. 5 | 30.2 | 133.4 | 139.7 | 101.6 | 81 | 90.2 | 184.2 | 22.4 | 8 | 3/4″ | 8.9 | 19.6 |
| 4″ | 100 | 254. 0 | 31.8 | 146.1 | 157.2 | 114.3 | 85.9 | 102.4 | 200.2 | 22.4 | 8 | 3/4″ | 11.8 | 26 |
| 5″ | 125 | 279. 5 | 35.1 | 177.8 | 185.7 | 141.2 | 98.6 | 128.3 | 235 | 22.4 | 8 | 3/4″ | 16 | 35.2 |
| 6″ | 150 | 317. 5 | 36.6 | 206.2 | 215.9 | 168.4 | 98.6 | 154.2 | 269.7 | 22.4 | 12 | 3/4″ | 20.2 | 44.6 |
| 8″ | 200 | 381. 0 | 41.1 | 260.4 | 269.7 | 219.2 | 111. 3 | 202.7 | 330.2 | 25.4 | 12 | 7/8″ | 31.2 | 68.8 |
| 10″ | 250 | 444. 5 | 47.8 | 320.5 | 323.9 | 273.1 | 117. 3 | 254.5 | 387.4 | 28.4 | 16 | 1″ | 44.3 | 97.5 |
| 12″ | 300 | 520. 5 | 50.8 | 374.7 | 381 | 323.9 | 130. 0 | 304.8 | 450.9 | 31.8 | 16 | 1 1/8″ | 63.5 | 140 |
| 14″ | 350 | 584. 0 | 53.8 | 425.5 | 412.8 | 355.6 | 142. 7 | 514..4 | 31.8 | 20 | 1 1/8″ | 86 | 190 | |
| 16″ | 400 | 647. 5 | 57.2 | 482.6 | 469.9 | 406.4 | 146. 1 | 571.5 | 35.1 | 20 | 1 1/4″ | 112 | 247 | |
| 18″ | 450 | 711. 0 | 60.5 | 533.4 | 533.4 | 457.2 | 158. 8 | 628.7 | 35.1 | 24 | 1 1/4″ | 141 | 310 | |
| 20″ | 500 | 774. 5 | 63.5 | 587.2 | 584.2 | 508 | 162. 1 | 685.8 | 35.1 | 24 | 1 1/4″ | 173 | 382 | |
| 24″ | 600 | 914. 5 | 69.9 | 701.5 | 692.2 | 609.6 | 168. 1 | 812.8 | 41.1 | 24 | 1 1/2″ | 248 | 546 | |
Class 600 WNRF Flange Dimensions
| Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub | Diameter of Raised Face | Hub Diam. Chamfer of W.N | Lengtd Hub | Diam. of Bolt Circle | Diam. of Bolt Holes | Number of Bolts | Diam. of Bolts (inch) | Approx. Weight | ||
| inch | dn | O | C | X | G | A | Y | BC | BH | BN | BD | KG/PCS | LB/PCS |
| 1/2″ | 15 | 95.5 | 14.2 | 38.1 | 35.1 | 22.4 | 52.3 | 66.5 | 15.7 | 4 | 1/2″ | 0.9 | 2 |
| 3/4″ | 20 | 117. 5 | 15.7 | 47.8 | 42.9 | 25.4 | 57.2 | 82.6 | 19.1 | 4 | 5/8″ | 1.6 | 3.5 |
| 1″ | 25 | 124. 0 | 17.5 | 53.8 | 50.8 | 26.9 | 62 | 88.9 | 19.1 | 4 | 5/8″ | 1.9 | 4.2 |
| 1-1/4″ | 32 | 133. 5 | 20.6 | 63.5 | 63.5 | 28.4 | 66.5 | 98.6 | 19.1 | 4 | 5/8″ | 2.6 | 5.8 |
| 1-1/2″ | 40 | 155. 5 | 22.4 | 69.9 | 73.2 | 31.8 | 69.9 | 114.3 | 22.4 | 4 | 3/4″ | 3.6 | 8 |
| 2″ | 50 | 165. 0 | 25.4 | 84.1 | 91.9 | 36.6 | 73.2 | 127 | 19.1 | 8 | 5/8″ | 4.7 | 10.4 |
| 2-1/2″ | 65 | 190. 5 | 28.4 | 100.1 | 104.6 | 41.1 | 79.2 | 149.4 | 22.4 | 8 | 3/4″ | 4.8 | 15 |
| 3″ | 80 | 209. 5 | 31.8 | 117.3 | 127 | 46 | 82.6 | 168.1 | 22.4 | 8 | 3/4″ | 8.7 | 19.3 |
| 3-1/2″ | 90 | 228. 5 | 35.1 | 133.4 | 139.7 | 49.3 | 85.9 | 184.2 | 25.4 | 8 | 7/8″ | 11.6 | 25.5 |
| 4″ | 100 | 273. 0 | 38.1 | 152.4 | 157.2 | 53.8 | 101. 6 | 215.9 | 25.4 | 8 | 7/8″ | 18.4 | 40.5 |
| 5″ | 125 | 330. 0 | 44.5 | 189 | 185.7 | 60.5 | 114. 3 | 266.7 | 28.4 | 8 | 1″ | 31 | 68 |
| 6″ | 150 | 355. 5 | 47.8 | 222.3 | 215.9 | 66.5 | 117. 3 | 292.1 | 28.4 | 12 | 1″ | 37 | 81.4 |
| 8″ | 200 | 419. 0 | 55.6 | 273.1 | 269.7 | 76.2 | 133. 4 | 349.3 | 31.8 | 12 | 1 1/8″ | 54.5 | 120 |
| 10″ | 250 | 508. 0 | 63.5 | 342.9 | 323.9 | 85.9 | 152. 4 | 431.8 | 35.1 | 16 | 1 1/4″ | 98.5 | 195 |
| 12″ | 300 | 559. 0 | 66.5 | 400.1 | 381 | 91.9 | 155. 4 | 489 | 35.1 | 20 | 1 1/4″ | 105 | 231 |
| 14″ | 350 | 603. 5 | 69.9 | 431.8 | 412.8 | 93.7 | 165. 1 | 527.1 | 38.1 | 20 | 1 3/8″ | 150 | 330 |
| 16″ | 400 | 686. 0 | 76.2 | 495.3 | 469.9 | 106.4 | 177. 8 | 603.3 | 41.1 | 20 | 1 1/2″ | 177 | 390 |
| 18″ | 450 | 743. 0 | 82.6 | 546.1 | 533.4 | 117.3 | 184. 2 | 654.1 | 44.5 | 20 | 1 5/8″ | 228 | 503 |
| 20″ | 500 | 813. 0 | 88.9 | 609.6 | 584.2 | 127 | 190. 5 | 723.9 | 44.5 | 24 | 1 5/8″ | 285 | 628 |
| 24″ | 600 | 940. 0 | 101.6 | 717.6 | 692.2 | 139.7 | 203. 2 | 838.2 | 50.8 | 24 | 1 7/8″ | 372 | 820 |
Class 1500 WNRF Flanges Dimensions
| Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub | Hub Diam. Chamfer of W.N | Length Hub | Diam. of Bolt Circle | Diam. of Bolt Holes | Number of Bolts | Diam. of Bolts (inch) | Approx. Weight | ||
| inch | dn | O | C | X | A | Y | BC | BH | BN | BD | KG/PCS | LB/PCS |
| 1/2″ | 15 | 120.7 | 22.4 | 38.1 | 21.3 | 60.5 | 82.6 | 22.4 | 4 | 3/4″ | 2.1 | 4.6 |
| 3/4″ | 20 | 130 | 25.4 | 44.5 | 26.7 | 69.9 | 88.9 | 22.4 | 4 | 3/4″ | 2.7 | 5.9 |
| 1″ | 25 | 149.4 | 28.4 | 52.3 | 33.5 | 73.2 | 101.6 | 25.4 | 4 | 7/8″ | 3.9 | 8.6 |
| 1-1/4″ | 32 | 158.8 | 28.4 | 63.5 | 42.2 | 73.2 | 111.3 | 25.4 | 4 | 7/8″ | 4.5 | 9.9 |
| 1-1/2″ | 40 | 177.8 | 31.8 | 69.9 | 48.3 | 82.6 | 124 | 28.4 | 4 | 1″ | 6.2 | 13.7 |
| 2″ | 50 | 215.9 | 38.1 | 104.6 | 60.5 | 101.6 | 165.1 | 25.4 | 8 | 7/8″ | 11.3 | 24.9 |
| 2-1/2″ | 65 | 244.3 | 41.1 | 124 | 73.2 | 104.6 | 190.5 | 28.4 | 8 | 1″ | 16.3 | 36 |
| 3″ | 80 | 266.7 | 47.8 | 133.4 | 88.9 | 117.3 | 190.5 | 25.4 | 8 | 7/8″ | 21 | 46.3 |
| 4″ | 100 | 311.2 | 53.8 | 162.1 | 114.3 | 124 | 235 | 31.8 | 8 | 1 1/8″ | 31.8 | 70.1 |
| 5″ | 125 | 374.7 | 73.2 | 196.9 | 141.2 | 155.4 | 279.4 | 35.1 | 8 | 1 1/4″ | 59 | 129.8 |
| 6″ | 150 | 393.7 | 82.6 | 228.6 | 168.4 | 171.5 | 317.5 | 31.8 | 12 | 1 1/8″ | 72 | 158 |
| 8″ | 200 | 482.6 | 91.9 | 292.1 | 219.2 | 212.9 | 393.7 | 38.1 | 12 | 1 3/8″ | 124 | 273 |
| 10″ | 250 | 584.2 | 108 | 368.3 | 273.1 | 254 | 469.9 | 38.1 | 16 | 1 3/8″ | 207 | 456 |
| 12″ | 300 | 673.1 | 124 | 450.9 | 323.9 | 282.4 | 533.4 | 38.1 | 20 | 1 3/8″ | 306 | 674 |
| 14″ | 350 | 749.3 | 133.4 | 495.3 | 355.6 | 298.5 | 558.8 | 41.1 | 20 | 1 1/2″ | 416 | 917 |
| 16″ | 400 | 825.5 | 146.1 | 552.5 | 406.4 | 311.2 | 616 | 44.5 | 20 | 1 5/8″ | 567 | 1250 |
| 18″ | 450 | 914.4 | 162.1 | 596.9 | 457.2 | 327.2 | 685.8 | 50.8 | 20 | 1 7/8″ | 736 | 1623 |
| 20″ | 500 | 984.3 | 177.8 | 641.4 | 508 | 355.6 | 749.3 | 53.8 | 20 | 2″ | 929 | 2048 |
| 24″ | 600 | 1168.4 | 203.2 | 762 | 609.6 | 406.4 | 901.7 | 66.5 | 20 | 2 1/2″ | 1504 | 3316 |
Class 2500 WNRF Flanges Dimensions
| Nominal Pipe Size | O.D. Flange | Thk. Of Flange Min | Diam. of Hub | Hub Diam. Chamfer of W.N | Lengtd Hub.Y | Diam. of Bolt Circle | Diam. of Bolt Holes | Number of Bolts | Diam. of Bolts (inch) | Approx. Weight | ||
| inch | dn | O | C | X | A | Y | BC | BH | BN | BD | KG | LB |
| 1/2″ | 15 | 133.4 | 30.2 | 42.9 | 21.3 | 73.2 | 88.9 | 22.4 | 4 | 3/4″ | 3.2 | 7 |
| 3/4″ | 20 | 139.7 | 31.8 | 50.8 | 26.7 | 79.2 | 95.3 | 22.4 | 4 | 3/4″ | 3.6 | 8 |
| 1″ | 25 | 158.8 | 35.1 | 57.2 | 33.5 | 88.9 | 108 | 25.4 | 4 | 7/8″ | 5.4 | 12 |
| 1-1/4″ | 32 | 184.2 | 38.1 | 73.2 | 42.2 | 95.3 | 130 | 28.4 | 4 | 1″ | 7.8 | 17.2 |
| 1-1/2″ | 40 | 203.2 | 44.5 | 79.2 | 48.3 | 111.3 | 146.1 | 31.8 | 4 | 1 1/8″ | 11.5 | 25.4 |
| 2″ | 50 | 235 | 50.8 | 95.3 | 60.5 | 127 | 171.5 | 28.4 | 8 | 1″ | 19 | 42 |
| 2-1/2″ | 65 | 266.7 | 57.2 | 114.3 | 73.2 | 142.7 | 196.9 | 31.8 | 8 | 1 1/8″ | 24 | 52 |
| 3″ | 80 | 304.8 | 66.5 | 133.4 | 88.9 | 168.1 | 228.6 | 35.1 | 8 | 1 1/4″ | 42.6 | 94 |
| 4″ | 100 | 355.6 | 76.2 | 165.1 | 114.3 | 190.5 | 273.1 | 41.1 | 8 | 1 1/2″ | 64 | 141 |
| 5″ | 125 | 419.1 | 91.9 | 203.2 | 141.2 | 228.6 | 323.9 | 47.8 | 8 | 1 3/4″ | 111 | 244 |
| 6″ | 150 | 482.6 | 108 | 235 | 168.4 | 273.1 | 368.3 | 53.8 | 8 | 2″ | 171 | 378 |
| 8″ | 200 | 552.5 | 127 | 304.8 | 219.2 | 317.5 | 438.2 | 53.8 | 12 | 2″ | 261 | 576 |
| 10″ | 250 | 673.1 | 165.1 | 374.7 | 273.1 | 419.1 | 539.8 | 66.5 | 12 | 2 1/2″ | 485 | 1068 |
| 12″ | 300 | 762 | 184.2 | 441.5 | 323.9 | 463.6 | 619.3 | 73.2 | 12 | 2 3/4″ | 698 | 1539 |
Size Of WNRF Flanges
| Nom Pipe Size | Outside Diam | Sched 10 | Sched 20 | Sched 30 | Std. Wall | Sched 40 | Sched 60 | Extra Strong | Sched 80 | Sched 100 | Sched 120 | Sched 140 | Sched 160 | Double Extra Strong |
| 1/2” | 0.840 | 0.674 | – | – | 0.622 | 0.622 | – | 0.546 | 0.546 | – | – | – | 0.464 | 0.252 |
| 3/4” | 1.050 | 0.884 | – | – | 0.824 | 0.824 | – | 0.742 | 0.742 | – | – | – | 0.612 | 0.434 |
| 1” | 1.315 | 1.097 | – | – | 1.049 | 1.049 | – | 0.957 | 0.957 | – | – | – | 0.815 | 0.599 |
| 1.1/4” | 1.660 | 1.442 | – | – | 1.380 | 1.380 | – | 1.278 | 1.278 | – | – | – | 1.160 | 0.896 |
| 1.1/2” | 1.900 | 1.682 | – | – | 1.610 | 1.610 | – | 1.500 | 1.500 | – | – | – | 1.338 | 1.100 |
| 2” | 2.375 | 2.157 | – | – | 2.067 | 2.067 | – | 1.939 | 1.939 | – | – | – | 1.687 | 1.503 |
| 2.1/2” | 2.875 | 2.635 | – | – | 2.469 | 2.469 | – | 2.323 | 2.323 | – | – | – | 2.125 | 1.771 |
| 3” | 3.500 | 3.260 | – | – | 3.068 | 3.068 | – | 2.900 | 2.900 | – | – | – | 2.624 | 2.300 |
| 3-1/2” | 4.000 | 3.760 | – | – | 3.548 | 3.548 | – | 3.364 | 3.364 | – | – | – | – | 2.728 |
| 4” | 4.500 | 4.260 | – | – | 4.026 | 4.026 | – | 3.826 | 3.826 | – | 3.624 | – | 3.438 | 3.152 |
| 5” | 5.563 | 5.295 | – | – | 5.047 | 5.047 | – | 4.813 | 4.813 | – | 4.563 | – | 4.313 | 4.063 |
| 6” | 6.625 | 6.357 | – | – | 6.065 | 6.065 | – | 5.761 | 5.761 | – | 5.501 | – | 5.187 | 4.897 |
| 8” | 8.625 | 8.329 | 8.125 | 8.071 | 7.981 | 7.981 | 7.813 | 7.625 | 7.625 | 7.437 | 7.187 | 7.001 | 6.813 | 6.875 |
| 10” | 10.750 | 10.420 | 10.250 | 10.136 | 10.020 | 10.020 | 9.750 | 9.750 | 9.562 | 9.312 | 9.062 | 8.750 | 8.500 | 8.750 |
| 12” | 12.750 | 12.390 | 12.250 | 12.090 | 12.000 | 11.938 | 11.626 | 11.750 | 11.374 | 11.062 | 10.750 | 10.500 | 10.126 | 10.750 |
| 14” | 14.000 | 13.500 | 13.376 | 13.250 | 13.250 | 13.124 | 12.812 | 13.000 | 12.500 | 12.124 | 11.814 | 11.500 | 11.188 | – |
| 16” | 16.000 | 15.500 | 15.376 | 15.250 | 15.250 | 15.000 | 14.688 | 15.000 | 14.312 | 13.938 | 13.564 | 13.124 | 12.812 | – |
| 18” | 18.000 | 17.500 | 17.376 | 17.124 | 17.250 | 16.876 | 16.500 | 17.000 | 16.124 | 15.688 | 15.250 | 14.876 | 14.438 | – |
| 20” | 20.000 | 19.500 | 19.250 | 19.000 | 19.250 | 18.812 | 18.376 | 19.000 | 17.938 | 17.438 | 17.000 | 16.500 | 16.062 | – |
| 24” | 24.000 | 23.500 | 23.250 | 22.876 | 23.250 | 22.624 | 22.062 | 23.000 | 21.562 | 20.938 | 20.376 | 19.876 | 19.312 | – |
| 30” | 30.000 | 29.376 | 29.000 | 28.750 | 29.250 | – | – | 29.000 | – | – | – | – | – | – |
| 36” | 36.000 | 35.376 | 35.000 | 34.750 | 35.250 | 34.500 | – | 35.000 | – | – | – | – | – | – |
| 42” | 42.000 | – | – | – | 41.250 | – | – | 41.000 | – | – | – | – | – | – |
Weight Chart Of WNRF Flanges
| Nom Size | 150# | 300# | 600# | 900# | 1500# | 2500# | ||||||||||||
| WN | S/O | B/K | WN | S/O | B/K | WN | S/O | B/K | WN | S/O | B/K | WN | S/O | B/K | WN | S/O | B/K | |
| 1/2” | 0.7 | 0.4 | 0.5 | 0.8 | 0.7 | 0.8 | 0.9 | 0.8 | 0.8 | 2.1 | 1.8 | 1.9 | 2.1 | 1.8 | 1.9 | 3.2 | 3 | 3 |
| 3/4” | 0.8 | 0.7 | 0.8 | 1.4 | 1.2 | 1.2 | 1.6 | 1.4 | 1.4 | 2.7 | 2.4 | 2.7 | 2.7 | 2.4 | 2.7 | 3.6 | 4 | 4.5 |
| 1” | 1.1 | 0.8 | 0.9 | 1.7 | 1.4 | 1.5 | 1.9 | 1.7 | 1.7 | 3.9 | 3.6 | 3.7 | 3.9 | 3.6 | 3.7 | 5.4 | 5 | 5 |
| 1.1/4” | 1.5 | 1.2 | 1.3 | 2.2 | 1.8 | 2 | 2.6 | 2.1 | 2.4 | 4.5 | 4.1 | 4.3 | 4.5 | 4.1 | 4.3 | 7.8 | 8 | 8 |
| 1.1/2” | 1.8 | 1.4 | 1.6 | 3.2 | 2.7 | 2.9 | 3.6 | 3.1 | 3.4 | 6.2 | 5.4 | 5.9 | 6.2 | 5.4 | 5.9 | 11.5 | 11 | 11 |
| 2” | 2.7 | 2.2 | 2.6 | 3.6 | 3.2 | 3.5 | 4.7 | 3.9 | 4.4 | 11.3 | 10.5 | 11.3 | 11.3 | 10.5 | 11.3 | 19 | 17 | 17 |
| 2.1/2” | 4.4 | 3.5 | 4.1 | 5.4 | 4.5 | 5.3 | 4.8 | 5.4 | 6.8 | 16.3 | 15.8 | 16 | 16.3 | 15.8 | 16 | 24 | 25 | 25 |
| 3” | 5.2 | 3.8 | 5.1 | 7.3 | 5.9 | 7.2 | 8.7 | 7.3 | 8.9 | 15 | 12.3 | 16.8 | 21 | 21.5 | 19.5 | 42.6 | 38 | 39 |
| 3-1/2” | 6.4 | 5 | 6.5 | 8.9 | 7.5 | 9.2 | 11.6 | 9 | 12.7 | – | – | – | – | – | – | – | – | – |
| 4” | 7.5 | 5.6 | 7.5 | 11.8 | 10 | 12.2 | 18.4 | 16.5 | 18.6 | 24 | 23.2 | 24.5 | 31.8 | 31 | 33 | 64 | 58 | 60 |
| 5” | 9.2 | 6.5 | 9.2 | 16 | 12.5 | 16 | 31 | 28.5 | 30.8 | 38.5 | 37.5 | 39.5 | 59 | 58.8 | 60 | 111 | 95 | 101 |
| 6” | 11.0 | 8.1 | 11.8 | 20.2 | 16.5 | 22 | 37 | 36.2 | 38 | 50 | 48.3 | 51.5 | 72 | 74 | 75 | 171 | 146 | 156 |
| 8” | 18.4 | 13 | 20.4 | 31.2 | 25.5 | 36 | 54.5 | 51.5 | 62.2 | 85 | 75 | 89 | 124 | 112 | 125 | 261 | 220 | 242 |
| 10” | 25.5 | 18.4 | 31 | 44.3 | 35 | 55 | 98.5 | 76.2 | 102 | 123 | 110 | 131 | 207 | 184 | 215 | 485 | 420 | 465 |
| 12” | 37 | 28.5 | 47 | 63.5 | 52 | 82.5 | 105 | 89.5 | 132 | 168 | 146 | 187 | 306 | 264 | 316 | 698 | 590 | 665 |
| 14” | 51 | 37.5 | 60 | 86 | 73 | 108 | 150 | 102 | 158 | 198 | 172 | 224 | 416 | – | – | – | – | – |
| 16” | 61.5 | 44.5 | 61 | 112 | 88 | 139 | 177 | 150 | 225 | 225 | 192 | 259 | 567 | – | – | – | – | – |
| 18” | 71.5 | 54 | 93 | 141 | 115 | 178 | 228 | 180 | 285 | 318 | 272 | 383 | 736 | – | – | – | – | – |
| 20” | 85 | 72 | 127 | 173 | 139 | 228 | 285 | 231 | 365 | 376 | 330 | 482 | 929 | – | – | – | – | – |
| 24” | 119 | 95 | 190 | 248 | 212 | 350 | 372 | 330 | 532 | 680 | 632 | 905 | 1504 | – | – | – | – | – |
Pressure Rating Of WNRF Flanges
| ANSI/ASME B16.34 | ANSI PRESSURE RATING | ||||||
| Temperature (in F°) | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| < 100 | 285 | 740 | 985 | 1480 | 2220 | 3705 | 6170 |
| 200 | 260 | 680 | 905 | 1360 | 2035 | 3395 | 5655 |
| 300 | 230 | 655 | 870 | 1310 | 1965 | 3270 | 5450 |
| 400 | 200 | 635 | 845 | 1265 | 1900 | 3170 | 5280 |
| 500 | 170 | 605 | 805 | 1205 | 1810 | 3015 | 5025 |
| 600 | 140 | 570 | 755 | 1135 | 1705 | 2840 | 4730 |
| 650 | 125 | 550 | 730 | 1100 | 1650 | 2745 | 4575 |
| 700 | 110 | 530 | 710 | 1060 | 1590 | 2655 | 4425 |
| 750 | 95 | 505 | 675 | 1015 | 1520 | 2535 | 4230 |
| 800 | 80 | 410 | 550 | 825 | 1235 | 2055 | 3430 |
| 850 | 65 | 320 | 425 | 640 | 955 | 1595 | 2655 |
| 900 | 50 | 230 | 305 | 460 | 690 | 1150 | 1915 |
| 950 | 35 | 135 | 185 | 275 | 410 | 685 | 1145 |
| 1000 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| Hydrostatic Test Pressure (in Psig) | 450 | 1125 | 1500 | 2225 | 3350 | 5575 | 9275 |
| ANSI/ASME B16.34 | ANSI PRESSURE RATING | ||||||
| Temperature in C° | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -29 / 38 | 19.6 | 51.1 | 68.1 | 102.1 | 153.2 | 255.3 | 425.5 |
| 50 | 19.2 | 50.1 | 66.8 | 100.2 | 150.4 | 250.6 | 417.7 |
| 100 | 17.7 | 46.6 | 62.1 | 93.2 | 139.8 | 233 | 388.3 |
| 150 | 15.8 | 45.1 | 60.1 | 90.2 | 135.2 | 225.4 | 375.6 |
| 200 | 13.8 | 43.8 | 58.4 | 87.6 | 131.4 | 219 | 365 |
| 250 | 12.1 | 41.9 | 55.9 | 83.9 | 125.8 | 209.7 | 349.5 |
| 300 | 10.2 | 39.8 | 53.1 | 79.6 | 119.5 | 199.1 | 331.8 |
| 325 | 9.3 | 38.7 | 51.6 | 77.4 | 116.1 | 193.6 | 322.6 |
| 350 | 8.4 | 37.6 | 50.1 | 75.1 | 112.7 | 187.8 | 313 |
| 375 | 7.4 | 36.4 | 48.5 | 72.7 | 109.1 | 181.8 | 303.1 |
| 400 | 6.5 | 34.7 | 46.3 | 69.4 | 104.2 | 173.6 | 289.3 |
| 425 | 5.5 | 28.8 | 38.4 | 57.5 | 86.3 | 143.8 | 239.7 |
| 450 | 4.6 | 23 | 30.7 | 46 | 69 | 115 | 191.7 |
| 475 | 3.7 | 17.4 | 23.2 | 34.9 | 52.3 | 87.2 | 145.3 |
| 500 | 2.8 | 11.8 | 15.7 | 23.5 | 35.3 | 58.8 | 97.9 |
Price Of WNRF Flanges
| Stainless Steel Flanges | USD $2.05 - $10.06 / Piece (FOB Price) on request |
| High Nickel Alloys Flanges | USD $8.10 - $20.20 / Piece (FOB Price) on request |
| Duplex & Super Duplex Flange | USD $10.20 - $35.50 / Piece (FOB Price) on request |
| Cupro Nickel Flanges | USD $5.19 - $10.48 / Piece (FOB Price) on request |
| Carbon Steel Flanges | USD $2.08 - $7.10 / Piece (FOB Price) on request |
Application Of WNRF Flanges
We make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers.
- Petrochemical Industries
- Power Generation Industries
- Food Processing Industries
- Oil & Gas Industries
- Sugar Industries
Testing Of WNRF Flanges
We known for its accurate and perfect dimensions. We thoroughly test all our products before shipping them to the customers. We carry out destructive as well as non-destructive tests on all our products.
- Eddy Current Examining
- Hydrostatic Analysis
- Pitting Protection Test
- Power Generation Industries
- Positive Material Recognition
Packing Of WNRF Flanges
We uses the most safest and the most effective ways of packaging for all types of deliveries. We pack our goods in various ways such as:
- Wooden Boxes
- Wooden Pallets
- Shrink-Wrapped
- Carton Boxes
- Wooden crates
People Also Search
Cities We Delivered
Country We Delivered
People Also Search
2507 Super Duplex WNRF Flanges At Factory Price, ASME SA182 Duplex 2205 WNRF Flanges At Factory Price, UNS N08904 WNRF Flanges Weight Calculator, UNS S30400 WNRF Flanges Price List In India, Hastelloy C276 WNRF Flanges Price List, DIN 1.4301 WNRF Flanges Catalogue, ASME SA182 SS 316 WNRF Flanges Price Per Kg.
Cities We Delivered
ASME SA182 SS 316 WNRF Flanges Supplier in Coimbatore, UNS S30400 WNRF Flanges Manufacturer in Mumbai, ASME SA182 Duplex 2205 WNRF Flanges Stockist in Chennai, Inconel 625 WNRF Flanges Supplier in Hyderabad, 2507 Super Duplex WNRF Flanges Supplier in Pune, UNS N08904 WNRF Flanges Supplier in Hyderabad, DIN 1.4301 WNRF Flanges Stockist in Ahmedabad.
Country We Delivered
2507 Super Duplex WNRF Flanges Supplier in Qatar, Inconel 625 WNRF Flanges Exporter in Indonesia, UNS N06625 WNRF Flanges Exporter in South Africa, ASME SA182 Duplex 2205 WNRF Flanges Stockist in UAE, 304 Stainless Steel WNRF Flanges Stockist in Australia, WRN 2.4856 WNRF Flanges Manufacturer in Vietnam, Duplex 31803 WNRF Flanges Stockist in Oman.
Types of Flanges
- Forge Flange
- Blind Flange
- Slip On Flange
- Weldneck Flange
- Lap Joint Flange
- Threaded Flange
- Socketweld Flange
- Long Weld Neck Flange
- Weldo / Nipo Flange
- Orifice Flange
- Reducing Flange
- Flat Flange
- Loose Flange
- RTJ Flanges
- SORF Flanges
- Square Flanges
- SWRF Flanges
- Expander Flanges
- WNRF Flanges
- Ring Type Joint Flanges
- Groove & Tongue Flanges
- Spectacle Blind Flanges
- Weld Neck Flanges A / B Flanges
- Spades Ring Spacers Flanges
- Screwed Flanges
- Forging Facing Flanges
- Flanges Bolts
